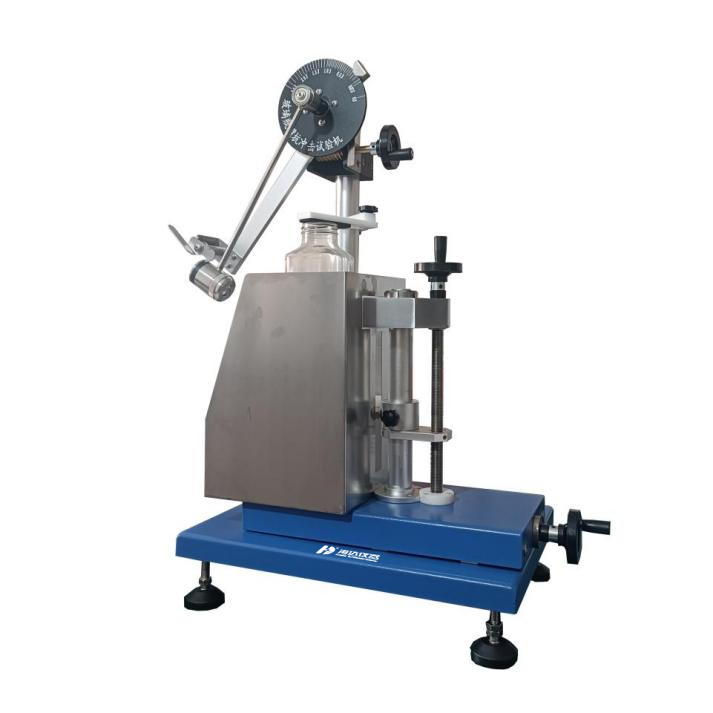

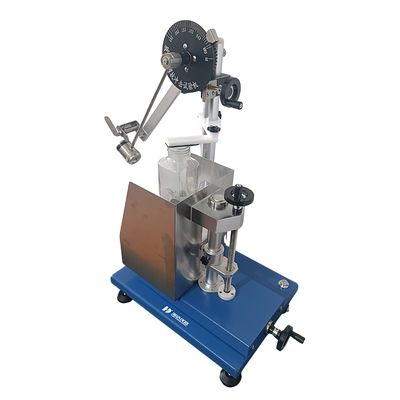

EQUIPMENT DETAILS OF 5081-HD GLASS BOTTLE IMPACT TESTER
***picture for reference***
MACHINE PRODUCTION
Bottle impact tester is used for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottles, glass containers and other types of glass bottles to carry out impact test.
TESTING PRINCIPLE
According to the principle of energy conversion, the impact energy of the pendulum on the glass bottle is determined by the potential energy of the pendulum. When the angle of the pendulum is a certain value, the potential energy of the pendulum is also a certain value, and the impact energy of the pendulum on the glass bottle is also a certain value.
-
Passing test
Place the specimen on the support table, close to the rear support. Adjust the support table up and down, adjust the strike part to the part to be tested, and then adjust the support table horizontally, so that the pendulum is in a free static state and the striking object is slightly touching the surface of the specimen. Repeatedly strike the bottle with the specified impact energy at three points about 120o apart around the bottle to check whether the bottle is damaged.
-
Incremental test
After passing the sex test, with the specified impact energy to repeat the blow around the bottle at a distance of about 120o three points, and then increase the impact energy to repeat the test, until the bottle is destroyed.
STANDARD FEATURES
| Item | Description |
| Sample diameter range | φ20~160mm |
| Sample bottle height | 20~180mm |
| Impact energy | 0~3N·m |
| Dimension (L*W*H) | 500*350*700mm |
| Weight | 28Kg |
ABOUT US
Haida International Equipment Co,Ltd
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
WHY CHOOSE US?
- Design & Production : Solution Consultation for each order
- Recommend the most cost -performance machine
- Research & Develop the suitable one for Special- designed Model.
- Shipping & Delivery: One-Stop Service
- Production- Deliver to your door - Installation & Training- Technical Support
- Warranty
- 1 year warranty with lifetime technology support
- After-Sale Service
- React within 2 Hours
- Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
