High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Ampliación de imagen :  High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Datos del producto:
Lugar de origen: China
Nombre de la marca: Haida
Certificación: CE,,ISO
Número de modelo: 6008-HD
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Cada conjunto protegido con fibra de resina y película de PP, luego poner en caja de madera fuerte c
Tiempo de entrega: 20 días después de la confirmación del pedido
Condiciones de pago: En el caso de las empresas que no cumplen con los requisitos de la presente Directiva, el importe de
Capacidad de la fuente: 300 juegos por mes

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

descripción
Volumen de la cámara: ≥ 0,5 m3, con puerta de observación de vidrio Intervalo de gotas: Ajustable: 0 a 99,99 segundos
Papel de filtro: Dimensiones estándar; espesor: 0,15-0,17 mm Fuente de alimentación: AC 220V,50Hz,1KVA
Resaltar:

High Voltage Tracking Resistance Test Machine

,

flammability test Machine For Fabric

,

flammability tester For fabric

High Voltage Tracking Resistance Tester GB/T 6553-2003

Product Description

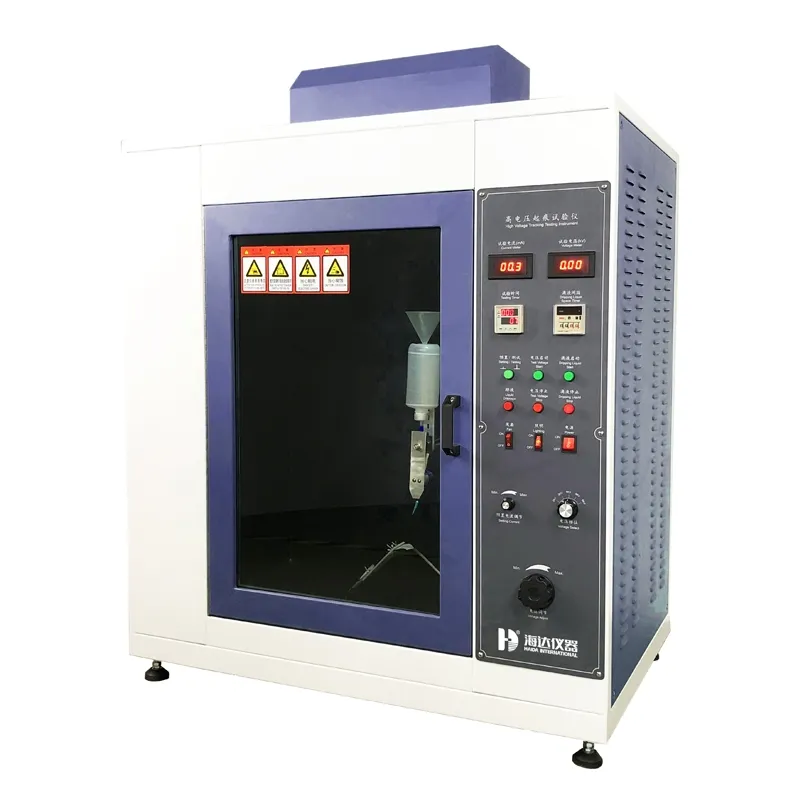

The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

Test Standard

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
Product Specifications

Model 6008-HD
Chamber Volume ≥0.5 m³, with a glass observation door.
Electrical Load Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval Adjustable: 0-99.99 seconds.
Filter Paper Standard dimensions; thickness: 0.15-0.17mm.
Electrodes Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
Key Features Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply AC 220V, 50Hz.

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 1High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 2High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 3High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 4High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 5High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
