Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Name: Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time
Brand: Hai Da Labtester
SKU: 60088-HD
Price: 7,500.00 USD
Availability: InStock

Todos los productos

Máquinas del prueba de laboratorio
(68)

Cámara de prueba ambiental
(114)

máquina extensible de la prueba
(224)

Equipo de ensayo de inflamabilidad
(45)

Cámara de humedad temperatura
(42)

cámara de envejecimiento acelerada
(59)

equipo de prueba del IP
(39)

Cámara de prueba de corrosión
(41)

Prueba de empaquetado de ISTA
(34)

Instrumentos de ensayo de envases de papel
(96)

equipo de prueba de los muebles
(115)

Máquina de ensayo con aguja
(10)

equipo de prueba de la materia textil
(40)

Sistemas de mesa de agitación por vibración
(23)

Serie de la máquina de prueba del cochecito de bebé
(6)

Máquina de medición óptica
(23)

Equipo de prueba de batería
(37)

Equipo de ensayo de caucho plástico
(54)

máquina de análisis químico
(19)

Máquina de ensayo de cigarrillos electrónicos
(10)

Certificación

Comentarios de cliente

Recibimos sí la máquina la semana pasada. Esta máquina era agradable, y agradece los serives de las después-ventas, era muy profesional.

—— Peter Mosa

En nombre de la empresa para visitar sus fábricas y empresas, el personal técnico es muy profesional y paciente, creo que estaría feliz de cooperar con usted de nuevo.

—— Steve Hubbard

Estoy en línea para chatear ahora

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

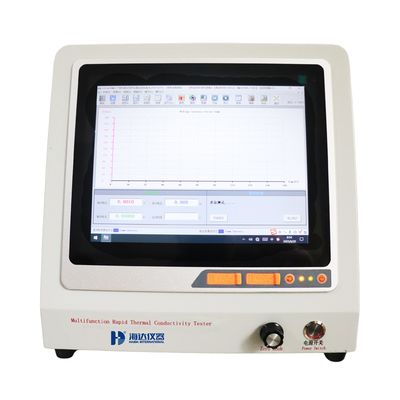

Ampliación de imagen : Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Haida
Certificación:	CE,,ISO
Número de modelo:	60088-HD

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	Negociable
Detalles de empaquetado:	Cada conjunto protegido con fibra de resina y película de PP, luego poner en caja de madera fuerte c
Tiempo de entrega:	20 días después de la confirmación del pedido
Condiciones de pago:	En el caso de las empresas que no cumplen con los requisitos de la presente Directiva, el importe de
Capacidad de la fuente:	300 juegos por mes

Contacto

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

descripción

Modo producido ozono:	Generador del ozono o método ULTRAVIOLETA de la absorción	Modo de ensayo A:	Temperatura ambiente
Exhibición:	El digital	Test Speed:	Ajustable
Producto:	equipo de prueba de goma	Método de control:	Prueba automática por ordenador
La temperatura sonó:	Temperatura normal ~ 200 °C	Potencia de calefacción eléctrica:	Las emisiones de gases de efecto invernadero de los gases de efecto invernadero de los gases de efec
Normas de prueba:	ASTM, ISO, GB, JIS, etc.
Resaltar:	Haidathermal Conductivity Tester , surface temperature Thermal Conductivity Tester , Hot Disk Thermal Conductivity Tester

^{_{Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)}}

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range	0.1~100m2/s
Thermal storage coefficient range	0.1~30w/(m2.k)
Specific heat capacity range	0.1~5kJ/(kg.ºC)
Thermal resistance range	0.5~0.000005mm2.k/w
Temperature measuring accuracy	≤0.0001ºC
Measurement relative error	≤3%
Repeatability error	≤3%
Measuring time	1~120 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe	Φ15mm
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode	Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension	(LWH)38040450mm
Machine weight	Approx. 20KG
Power	AC 220V±10%, 50/60 Hz, 500W
